Growseal™ Nano-brush Coat
nano-modified coating offers
Superior Waterproofing Performance
Novel cementitious
Environmental Waterproofing Coating with high flexibility and excellent adhesion.
|
 |
Incorporating Nanotechnology into Traditional Cementitious Waterproofing Coating
Traditional cementitious waterproofing coating has low flexibility and poor bonding strength on concrete substrate. With the help of nanotechnology a novel cementitious waterproofing coating is developed to have high flexibility and excellent adhesion on the substrate.
Nanotechnology |
 |
|
Nanoparticles having at least one dimension in the nanometer range can enhance the tensile strength, ductility, adhesion and other performance when they are efficiently incorporated into a coating system with uniform dispersion. A methodology has been developed to disperse the nanoparticles in the coating in order to modify the polymer cementitious coating, achieving higher elasticity and superior waterproof performance. |
 |
Please click to enlarge |
 |
 |
 |
Transmission electron microscopy (TEM) image of nanoparticles. |
◎ High Flexibility with >300% Elongation Value.  |
The incorporation of nanoparticles promotes a new load transferring mechanism in achieving high flexibility with good tensile strength, and thus covers minute cracks causes by various reasons. |
 |
Please click to enlarge |
  |
 |
|
 |
Shapes of the specimen before and during the tensile testing. |
|
 |
|
|
Please click to enlarge |
 |
|
 |
 |
|
Tensile curve of one coating specimen under tensile testing condition. |
 |
|
|
 |
|
◎ Superior Waterproof Performance (0mm Water Penetration under 0.5MPa Pressure over 72 Hours). |
Please click to enlarge |
 |
|
 |
 |
The incorporation of nanoparticles can enhance the waterproofing capability of the coating, accompanied with filling and sealing the pores of the surface covered and thus resisting hydrostatic pressure. |
Water permeability apparatus |
 |
|
|
 |
|
Please click to enlarge |
 |
|
  |
Investigation of depth of water penetration under 0.5MPa water pressure for 72 hours. No water penetration was found. |
|
 |
|

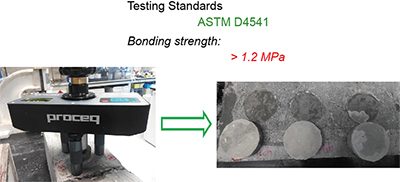

◎ Excellent Adhesion with Bonding Strength over 1.2 N/mm2. |
The presence of nanoparticles enables this new coating material to have excellent adhesion on a variety of substrates including concrete, pre-cast concrete, brick, porous stone and other masonry substates. |
|
 |
|
Please click to enlarge |
 |
|
  |
|
 |
|
◎ Low VOC |
◎ Easy Application (Applied with a Brush, Roller or Spraying Method). |
The two-component cementitious coating materials can be easily mixed by using a common site mixer. The mixed coating materials can be applied to damp surface of freshly placed concrete in new construction or restoration sites. |
|
 |
|
Application |
 |
|
The superior performance, easy application and cost-effective features further enable the developed coating to be easily applied to various construction waterproofing fields including basements, toilets, kitchens, terraces, swimming pools, water tanks, decks and flat roof. |
● Direct application on damp surfaces. |
● Adhesion to the substrate can be maintained over time. |
● Excellent waterproofing qualities-able to withstand high hydrostatic pressure. |
● Formation of a more solid and durable coating with good mechanical performance. |
● Pre-packed - Easy to mix and apply. |
|
 |
|
|
Manufactured in Hong Kong |
 |
|
